Overview

ductus
Marlin30
Marlin41
Marlin42
Marlin44
Marlin52
Marlin53
Marlin54

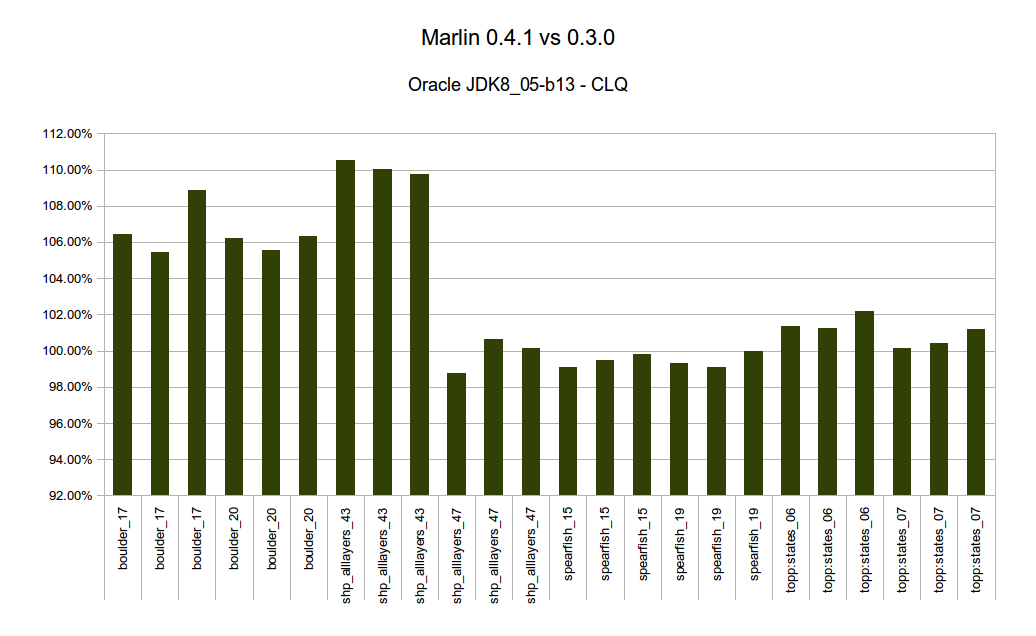

Marlin30_vs_41

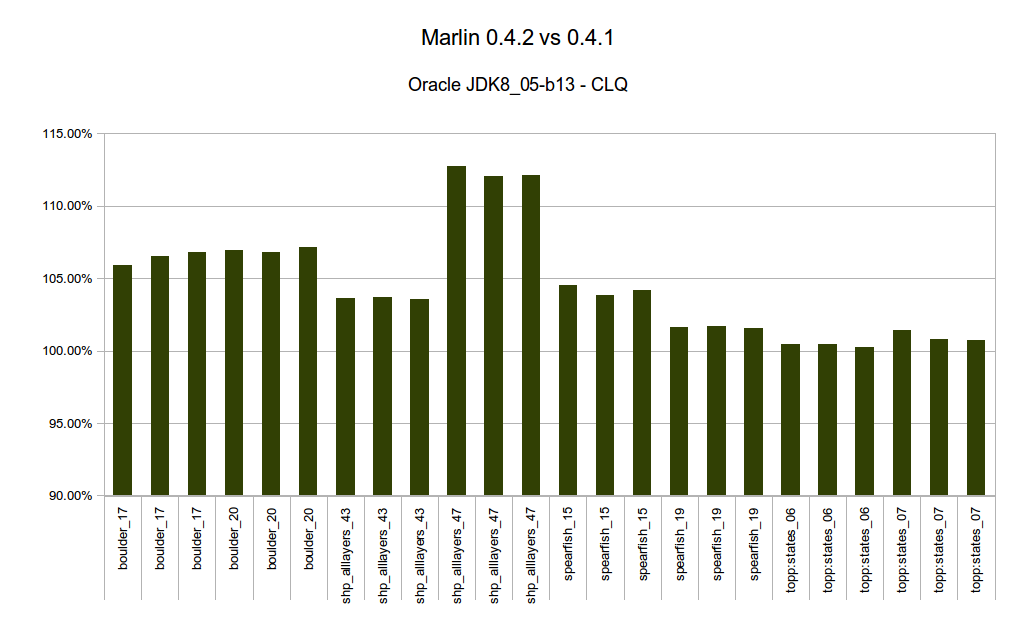

Marlin41_vs_42

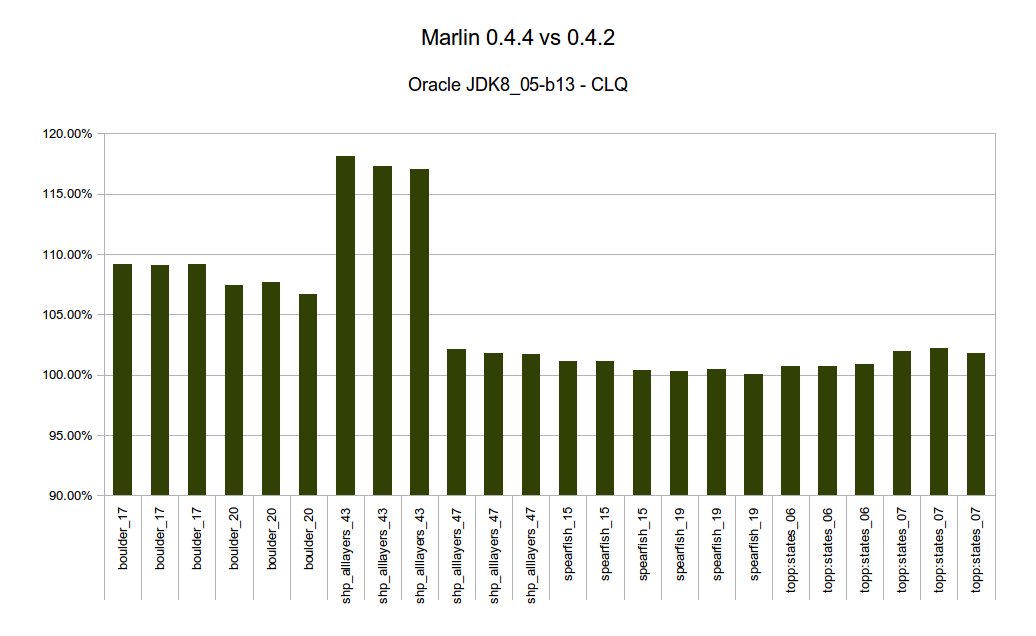

Marlin42_vs_44

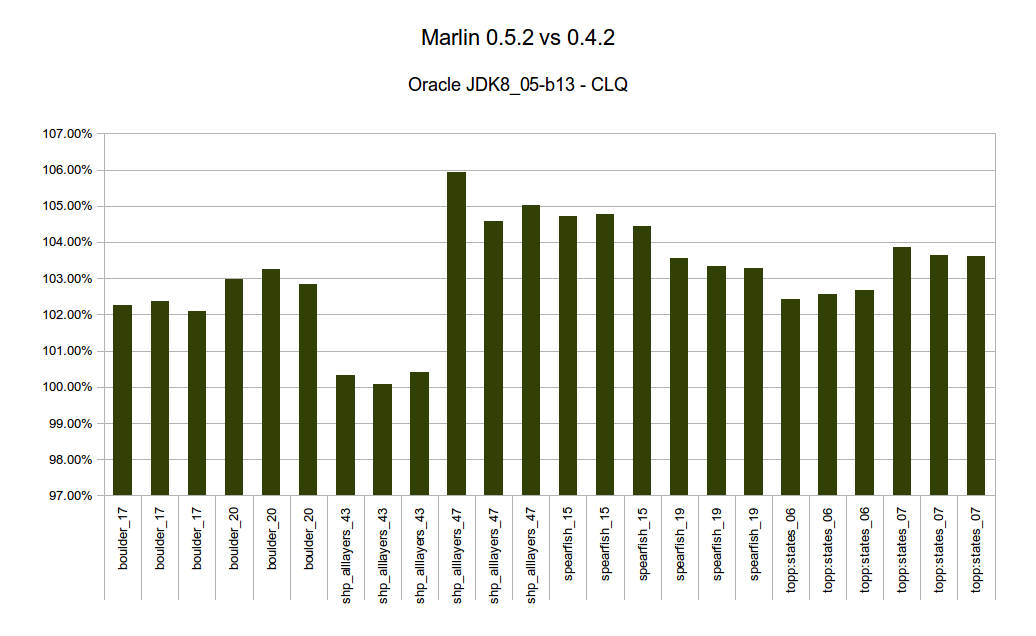

Marlin42_vs_52

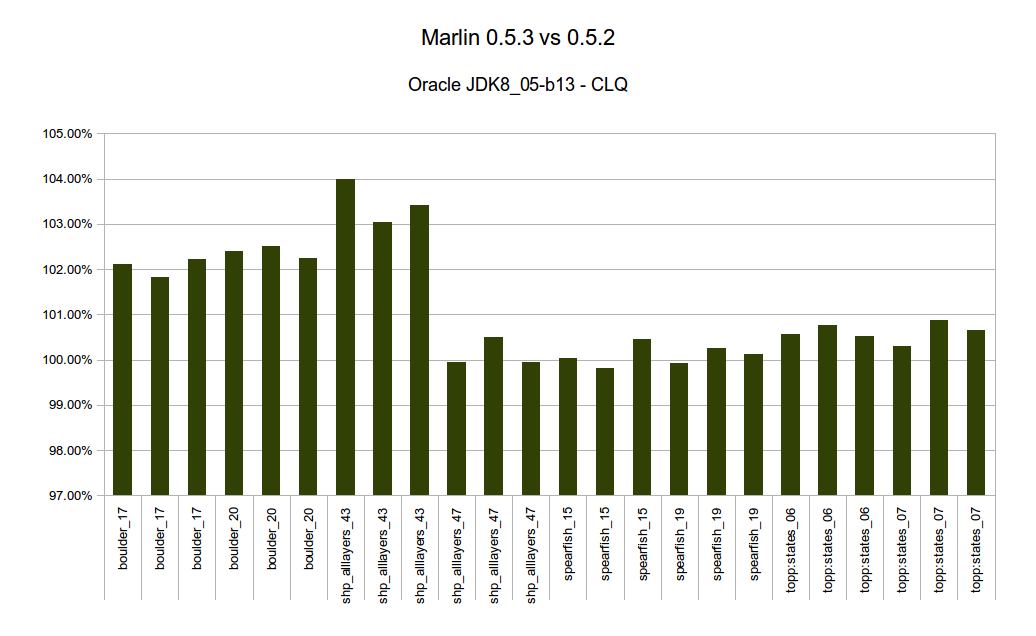

Marlin52_vs_53

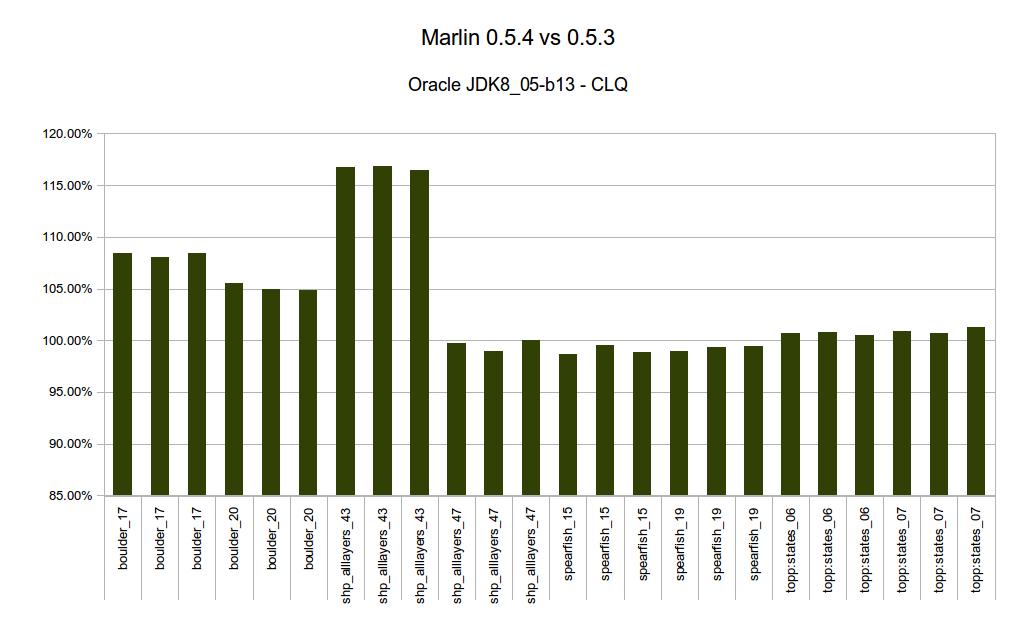

Marlin53_vs_54

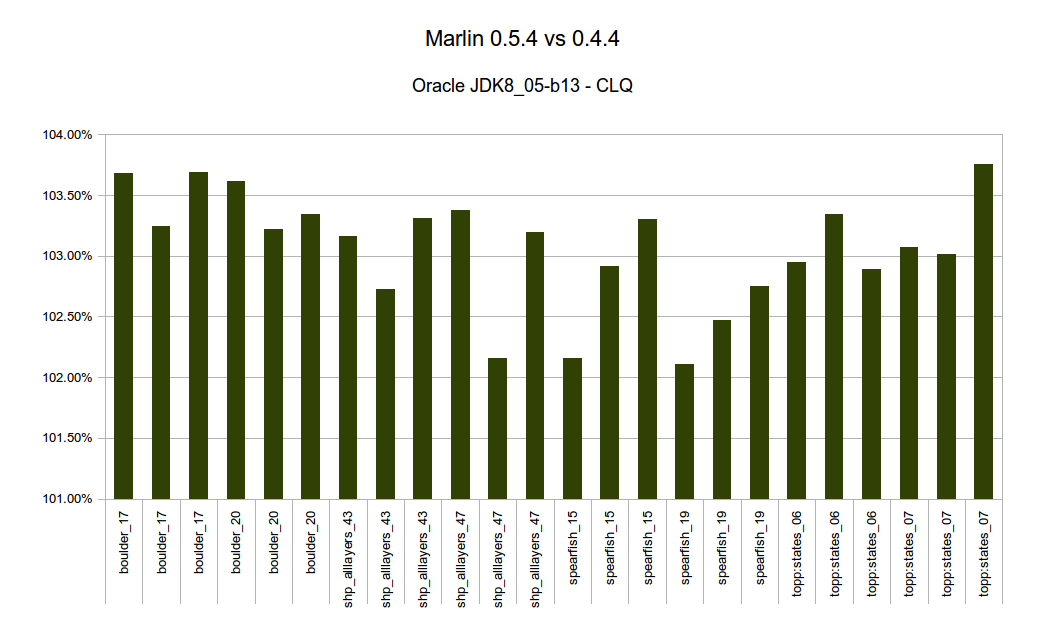

Marlin44_vs_54

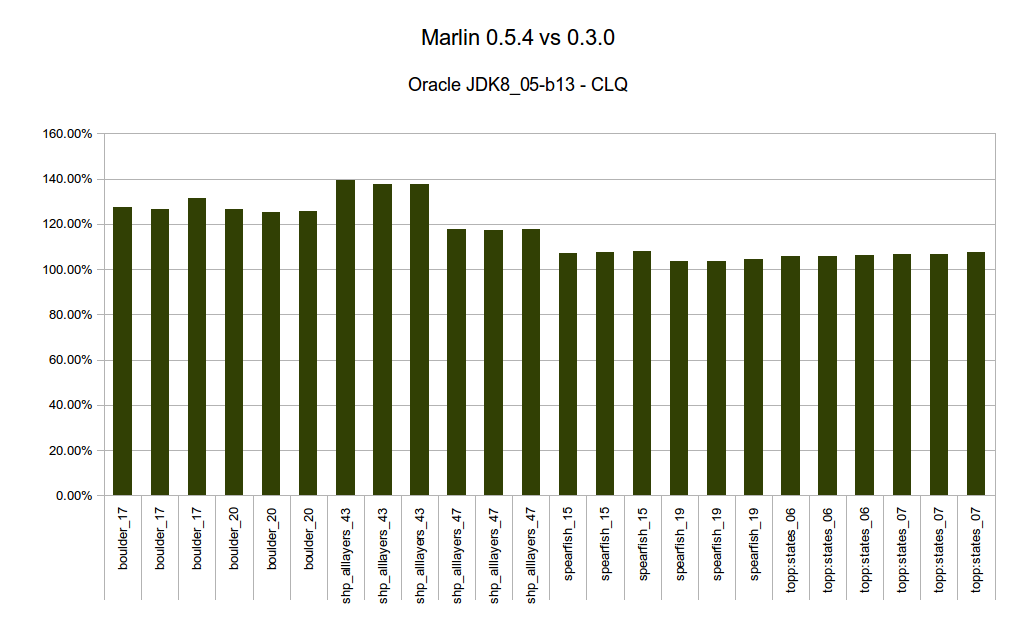

Marlin30_vs_54

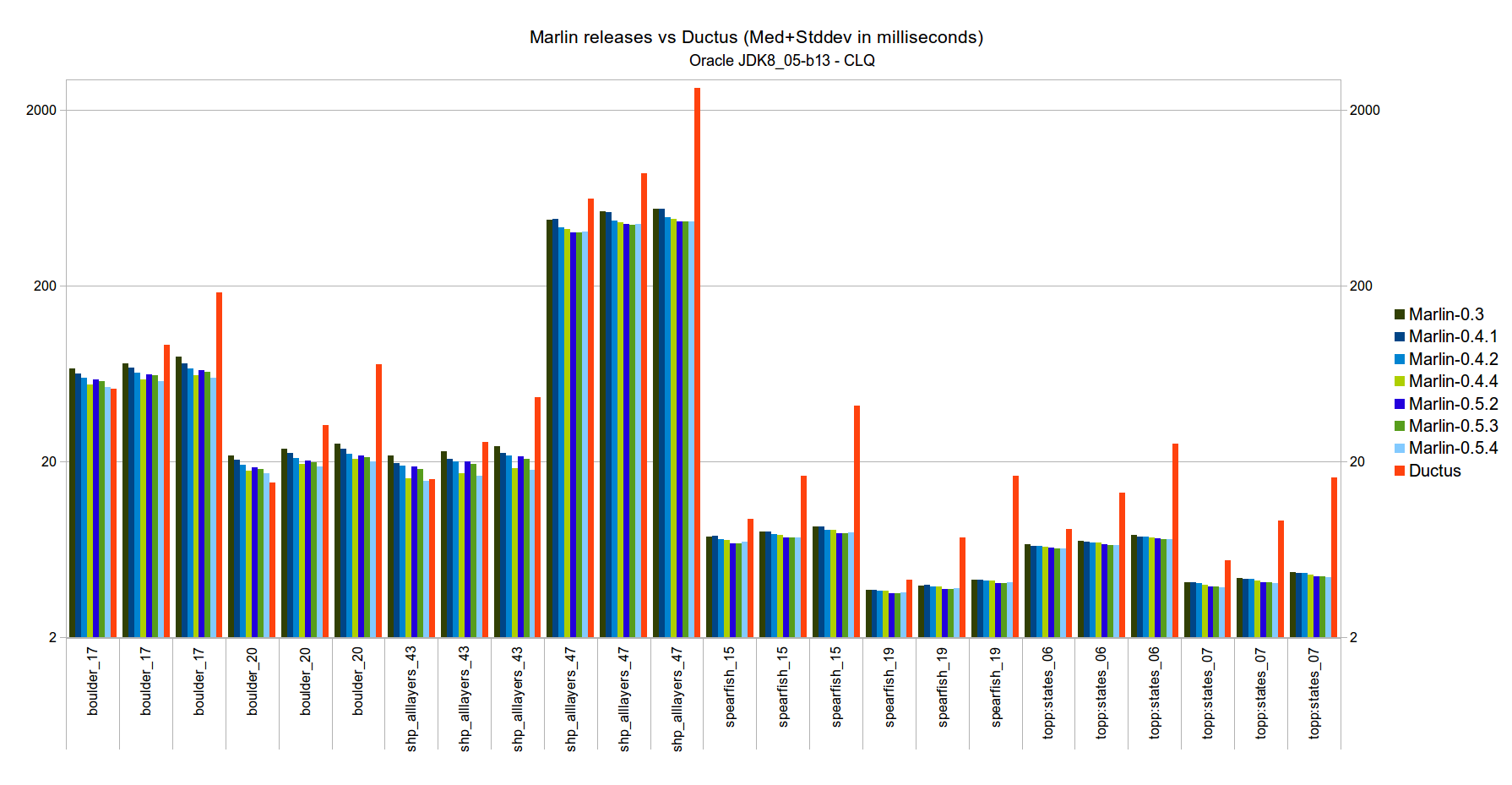

Marlin_Graph

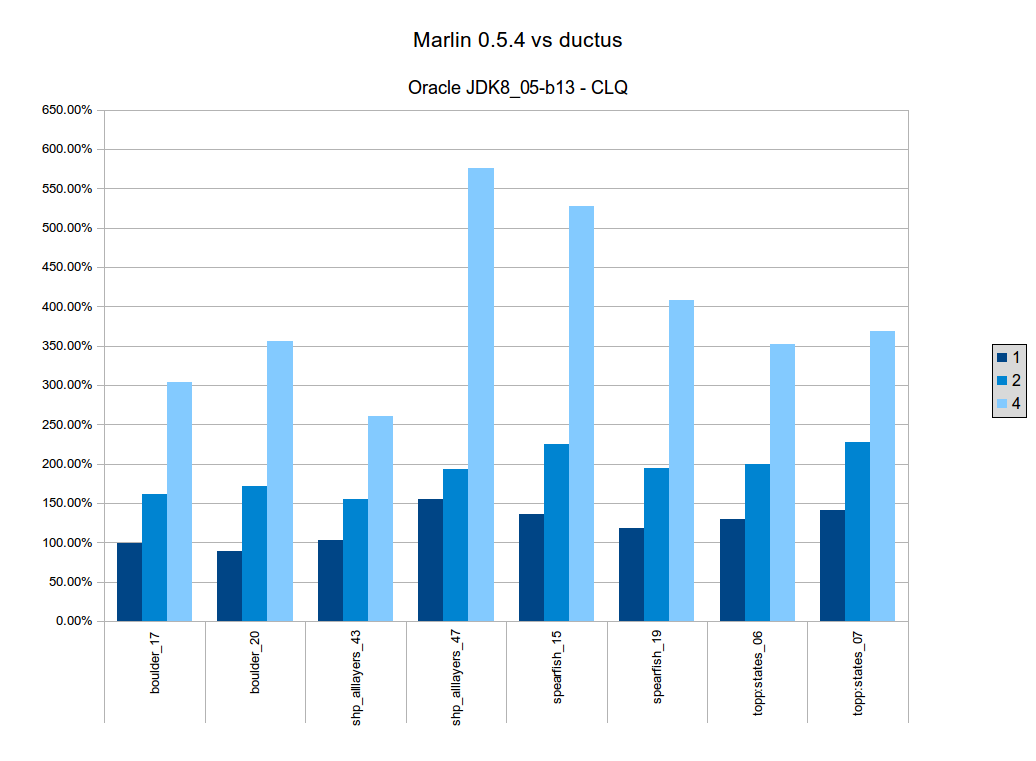

ductus_Marlin54

Sheet 1: ductus
score 204.420
05/03/14
Min duration per test = 5000 ms – Oracle JDK1.8.0_05-b13 (heap=2g)
Ductus










test threads ops Tavg Tmed stdDev rms Med+Stddev min max TotalOps [ms/op]
dc_boulder_2013-13-30-06-13-17.ser 1 101 52.077 51.98 0.325 51.981 52.306 51.483 62.253 101
dc_boulder_2013-13-30-06-13-17.ser 2 202 82.222 81.822 10.414 82.482 92.236 73.666 170.774 202
dc_boulder_2013-13-30-06-13-17.ser 4 404 149.489 148.831 34.233 152.718 183.064 99.067 464.061 404
dc_boulder_2013-13-30-06-13-20.ser 1 330 15.206 15.155 0.169 15.156 15.325 15.015 31.872 330
dc_boulder_2013-13-30-06-13-20.ser 2 660 25.788 25.728 6.719 26.591 32.447 20.954 70.65 660
dc_boulder_2013-13-30-06-13-20.ser 4 1320 52.443 52.327 19.582 55.871 71.909 15.536 243.352 1320
dc_shp_alllayers_2013-00-30-07-00-43.ser 1 168 15.92 15.809 0.174 15.81 15.983 15.652 34.597 168
dc_shp_alllayers_2013-00-30-07-00-43.ser 2 336 23.893 23.82 2.138 23.916 25.959 21.061 51.17 336
dc_shp_alllayers_2013-00-30-07-00-43.ser 4 672 42.074 42.009 4.68 42.269 46.69 16.939 110.424 672
dc_shp_alllayers_2013-00-30-07-00-47.ser 1 25 627.141 626.143 2.054 626.147 628.197 622.559 654.678 25
dc_shp_alllayers_2013-00-30-07-00-47.ser 2 50 856.696 855.992 19.246 856.208 875.238 831.554 915.638 50
dc_shp_alllayers_2013-00-30-07-00-47.ser 4 100 2597.828 2612.847 79.295 2614.05 2692.142 928.962 2794.857 100
dc_spearfish_2013-11-30-06-11-15.ser 1 506 9.35 9.34 0.137 9.341 9.476 9.232 14.834 506
dc_spearfish_2013-11-30-06-11-15.ser 2 1012 15.292 15.27 1.448 15.339 16.718 9.597 43.105 1012
dc_spearfish_2013-11-30-06-11-15.ser 4 2024 32.207 32.167 9.67 33.589 41.837 12.987 131.923 2024
dc_spearfish_2013-11-30-06-11-19.ser 1 1259 4.214 4.206 0.06 4.207 4.266 4.16 13.503 1259
dc_spearfish_2013-11-30-06-11-19.ser 2 2518 6.694 6.69 0.695 6.726 7.385 4.415 18.64 2518
dc_spearfish_2013-11-30-06-11-19.ser 4 5036 14.202 14.196 2.55 14.423 16.746 4.384 54.239 5036
dc_topp:states_2013-11-30-06-11-06.ser 1 639 8.206 8.182 0.106 8.183 8.288 8.112 23.822 639
dc_topp:states_2013-11-30-06-11-06.ser 2 1278 12.366 12.341 1.038 12.385 13.379 9.763 47.003 1278
dc_topp:states_2013-11-30-06-11-06.ser 4 2556 23.056 23.042 2.433 23.17 25.475 8.65 73.807 2556
dc_topp:states_2013-11-30-06-11-07.ser 1 974 5.448 5.413 0.078 5.413 5.491 5.36 39.696 974
dc_topp:states_2013-11-30-06-11-07.ser 2 1948 7.719 7.683 1.614 7.851 9.297 6.594 78.211 1948
dc_topp:states_2013-11-30-06-11-07.ser 4 3896 13.262 13.239 2.98 13.57 16.218 5.357 110.49 3896












score small 1 568 15.774 15.726 0.150 15.727 15.876 15.573 31.511

2 1136 24.853 24.765 3.438 25.041 28.203 20.864 68.508

4 2273 46.676 46.544 10.875 47.944 57.420 23.274 169.757













score big 1 25 627.141 626.143 2.054 626.147 628.197 622.559 654.678

2 50 856.696 855.992 19.246 856.208 875.238 831.554 915.638

4 100 2597.828 2612.847 79.295 2614.05 2692.142 928.962 2794.857













##############################################################





# Java: 1.8.0_05-b13





# VM: Java HotSpot(TM) 64-Bit Server VM 25.5-b02 (mixed mode)





# OS: Linux 3.8.0-35-generic (amd64)





# CPUs: 4 (virtual)





##############################################################





Loading profile file: /home/llooo/marlin/mapbench/bin/../profiles/sharedImage.properties





Profile properties (merged with defaults):





doClip=false










doCreateStrokedShape=false










doRotate=false










doScale=false










doShear=false










doUseWingRuleEvenOdd=false










maxThreads=4










minDuration=5000.0










minLoops=25










pass=1










rotateAngle=17.333










scale=4.0










scaleX=4.0










scaleY=4.0










shearX=2.0










shearY=2.0










useSharedImage=true










##############################################################










# Min duration per test = 5000.0 ms.










##############################################################










Sheet 2: Marlin30
score 82.941
05/03/14
Min duration per test = 5000 ms – Oracle JDK1.8.0_05-b13 (heap=2g)
Marlin-0.3










test threads ops Tavg Tmed stdDev rms Med+Stddev min max TotalOps [ms/op]
dc_boulder_2013-13-30-06-13-17.ser 1 77 67.51 67.4 0.416 67.401 67.816 66.899 76.341 77
dc_boulder_2013-13-30-06-13-17.ser 2 154 71.715 71.66 0.808 71.665 72.468 71.036 80.802 154
dc_boulder_2013-13-30-06-13-17.ser 4 308 75.973 75.953 3.239 76.022 79.193 68.36 89.734 308
dc_boulder_2013-13-30-06-13-20.ser 1 242 21.693 21.636 0.196 21.637 21.832 21.405 35.611 242
dc_boulder_2013-13-30-06-13-20.ser 2 484 22.832 22.795 0.831 22.81 23.625 22.567 41.127 484
dc_boulder_2013-13-30-06-13-20.ser 4 968 24.089 24.071 1.27 24.104 25.341 21.752 43.943 968
dc_shp_alllayers_2013-00-30-07-00-43.ser 1 244 21.427 21.387 0.291 21.389 21.678 21.184 31.392 244
dc_shp_alllayers_2013-00-30-07-00-43.ser 2 488 22.503 22.484 0.511 22.489 22.994 21.468 32.798 488
dc_shp_alllayers_2013-00-30-07-00-43.ser 4 976 23.753 23.744 0.869 23.76 24.613 21.35 35.228 976
dc_shp_alllayers_2013-00-30-07-00-47.ser 1 25 477.451 477.282 0.703 477.283 477.986 475.603 483.172 25
dc_shp_alllayers_2013-00-30-07-00-47.ser 2 50 529.716 529.661 1.739 529.663 531.4 527 535.098 50
dc_shp_alllayers_2013-00-30-07-00-47.ser 4 100 547.548 547.426 3.421 547.436 550.846 539.795 567.269 100
dc_spearfish_2013-11-30-06-11-15.ser 1 639 7.368 7.366 0.127 7.367 7.493 7.286 8.492 639
dc_spearfish_2013-11-30-06-11-15.ser 2 1278 7.916 7.916 0.086 7.916 8.001 7.834 8.339 1278
dc_spearfish_2013-11-30-06-11-15.ser 4 2556 8.257 8.254 0.306 8.259 8.56 7.296 18.189 2556
dc_spearfish_2013-11-30-06-11-19.ser 1 1432 3.677 3.676 0.053 3.677 3.729 3.635 4.133 1432
dc_spearfish_2013-11-30-06-11-19.ser 2 2864 3.904 3.904 0.045 3.904 3.948 3.649 4.161 2864
dc_spearfish_2013-11-30-06-11-19.ser 4 5728 4.087 4.086 0.204 4.091 4.29 3.658 13.957 5728
dc_topp:states_2013-11-30-06-11-06.ser 1 789 6.685 6.684 0.078 6.685 6.762 6.624 7.327 789
dc_topp:states_2013-11-30-06-11-06.ser 2 1578 7.025 7.025 0.077 7.026 7.102 6.632 7.399 1578
dc_topp:states_2013-11-30-06-11-06.ser 4 3156 7.378 7.375 0.308 7.381 7.683 6.605 17.447 3156
dc_topp:states_2013-11-30-06-11-07.ser 1 1293 4.084 4.083 0.056 4.084 4.14 4.044 4.577 1293
dc_topp:states_2013-11-30-06-11-07.ser 2 2586 4.296 4.296 0.054 4.297 4.351 4.065 4.559 2586
dc_topp:states_2013-11-30-06-11-07.ser 4 5172 4.51 4.508 0.226 4.514 4.734 4.049 14.598 5172












score small 1 674 18.921 18.890 0.174 18.891 19.064 18.725 23.982

2 1347 20.027 20.011 0.345 20.015 20.356 19.607 25.598

4 2695 21.150 21.142 0.917 21.162 22.059 19.010 33.299













score big 1 25 477.451 477.282 0.703 477.283 477.986 475.603 483.172

2 50 529.716 529.661 1.739 529.663 531.400 527.000 535.098

4 100 547.548 547.426 3.421 547.436 550.846 539.795 567.269













##############################################################





# Java: 1.8.0_05-b13





# VM: Java HotSpot(TM) 64-Bit Server VM 25.5-b02 (mixed mode)





# OS: Linux 3.8.0-35-generic (amd64)





# CPUs: 4 (virtual)





##############################################################





Loading profile file: /home/llooo/marlin/mapbench/bin/../profiles/sharedImage.properties





Profile properties (merged with defaults):





doClip=false










doCreateStrokedShape=false










doRotate=false










doScale=false










doShear=false










doUseWingRuleEvenOdd=false










maxThreads=4










minDuration=5000.0










minLoops=25










pass=1










rotateAngle=17.333










scale=4.0










scaleX=4.0










scaleY=4.0










shearX=2.0










shearY=2.0










useSharedImage=true










##############################################################










# Min duration per test = 5000.0 ms.










##############################################################










Sheet 3: Marlin41
score 81.974
05/03/14
Min duration per test = 5000 ms – Oracle JDK1.8.0_05-b13 (heap=2g)
Marlin-0.4.1










test threads ops Tavg Tmed stdDev rms Med+Stddev min max TotalOps [ms/op]
dc_boulder_2013-13-30-06-13-17.ser 1 81 63.508 63.415 0.298 63.416 63.713 62.867 71.491 81
dc_boulder_2013-13-30-06-13-17.ser 2 162 67.807 67.754 0.97 67.761 68.724 65.822 78.142 162
dc_boulder_2013-13-30-06-13-17.ser 4 324 70.956 70.94 1.815 70.963 72.755 64.912 82.269 324
dc_boulder_2013-13-30-06-13-20.ser 1 253 20.437 20.385 0.165 20.386 20.55 20.181 33.877 253
dc_boulder_2013-13-30-06-13-20.ser 2 506 21.608 21.573 0.811 21.588 22.384 21.276 39.642 506
dc_boulder_2013-13-30-06-13-20.ser 4 1012 22.702 22.688 1.141 22.717 23.829 20.417 38.936 1012
dc_shp_alllayers_2013-00-30-07-00-43.ser 1 272 19.449 19.412 0.202 19.413 19.615 19.263 29.448 272
dc_shp_alllayers_2013-00-30-07-00-43.ser 2 544 20.438 20.42 0.477 20.426 20.897 19.686 30.629 544
dc_shp_alllayers_2013-00-30-07-00-43.ser 4 1088 21.618 21.609 0.816 21.625 22.425 19.385 33.05 1088
dc_shp_alllayers_2013-00-30-07-00-47.ser 1 25 483.469 483.451 0.423 483.452 483.875 482.605 484.737 25
dc_shp_alllayers_2013-00-30-07-00-47.ser 2 50 526.613 526.578 1.482 526.58 528.06 524.073 530.864 50
dc_shp_alllayers_2013-00-30-07-00-47.ser 4 100 546.706 546.608 3.374 546.619 549.983 539.53 563.396 100
dc_spearfish_2013-11-30-06-11-15.ser 1 637 7.431 7.43 0.131 7.431 7.561 7.351 8.569 637
dc_spearfish_2013-11-30-06-11-15.ser 2 1274 7.959 7.959 0.084 7.96 8.043 7.426 8.405 1274
dc_spearfish_2013-11-30-06-11-15.ser 4 2548 8.304 8.3 0.276 8.305 8.576 7.399 17.806 2548
dc_spearfish_2013-11-30-06-11-19.ser 1 1425 3.704 3.704 0.052 3.704 3.755 3.665 4.186 1425
dc_spearfish_2013-11-30-06-11-19.ser 2 2850 3.94 3.94 0.045 3.94 3.985 3.699 4.211 2850
dc_spearfish_2013-11-30-06-11-19.ser 4 5700 4.115 4.114 0.179 4.118 4.292 3.688 13.473 5700
dc_topp:states_2013-11-30-06-11-06.ser 1 796 6.588 6.587 0.084 6.587 6.671 6.525 7.274 796
dc_topp:states_2013-11-30-06-11-06.ser 2 1592 6.945 6.945 0.071 6.945 7.016 6.576 7.396 1592
dc_topp:states_2013-11-30-06-11-06.ser 4 3184 7.275 7.272 0.247 7.276 7.519 6.577 16.785 3184
dc_topp:states_2013-11-30-06-11-07.ser 1 1294 4.081 4.08 0.054 4.081 4.135 4.04 4.543 1294
dc_topp:states_2013-11-30-06-11-07.ser 2 2588 4.287 4.287 0.048 4.287 4.334 4.062 4.563 2588
dc_topp:states_2013-11-30-06-11-07.ser 4 5176 4.489 4.487 0.19 4.491 4.678 4.039 14.026 5176












score small 1 680 17.885 17.859 0.141 17.860 18.000 17.699 22.770

2 1359 18.998 18.983 0.358 18.987 19.340 18.364 24.713

4 2719 19.923 19.916 0.666 19.928 20.582 18.060 30.906













score big 1 25 483.469 483.451 0.423 483.452 483.875 482.605 484.737

2 50 526.613 526.578 1.482 526.580 528.060 524.073 530.864

4 100 546.706 546.608 3.374 546.619 549.983 539.530 563.396













##############################################################





# Java: 1.8.0_05-b13





# VM: Java HotSpot(TM) 64-Bit Server VM 25.5-b02 (mixed mode)





# OS: Linux 3.8.0-35-generic (amd64)





# CPUs: 4 (virtual)





##############################################################





Loading profile file: /home/llooo/marlin/mapbench/bin/../profiles/sharedImage.properties





Profile properties (merged with defaults):





doClip=false










doCreateStrokedShape=false










doRotate=false










doScale=false










doShear=false










doUseWingRuleEvenOdd=false










maxThreads=4










minDuration=5000.0










minLoops=25










pass=1










rotateAngle=17.333










scale=4.0










scaleX=4.0










scaleY=4.0










shearX=2.0










shearY=2.0










useSharedImage=true










##############################################################










# Min duration per test = 5000.0 ms.










##############################################################










INFO: ===============================================================================










INFO: Marlin software rasterizer = ENABLED










INFO: Version = [marlin-0.4.1]










INFO: sun.java2d.renderer = org.marlin.pisces.PiscesRenderingEngine










INFO: sun.java2d.renderer.useThreadLocal = false










INFO: sun.java2d.renderer.useRef = soft










INFO: sun.java2d.renderer.pixelsize = 2048










INFO: sun.java2d.renderer.subPixel_log2_X = 3










INFO: sun.java2d.renderer.subPixel_log2_Y = 3










INFO: sun.java2d.renderer.tileSize_log2 = 5










INFO: sun.java2d.renderer.useFastMath = true










INFO: sun.java2d.renderer.doStats = false










INFO: sun.java2d.renderer.doMonitors = false










INFO: sun.java2d.renderer.doChecks = false










INFO: sun.java2d.renderer.useJul = false










INFO: sun.java2d.renderer.logCreateContext = false










INFO: sun.java2d.renderer.logUnsafeMalloc = false










INFO: ===============================================================================










INFO: AAShapePipe: overriding JDK implementation: marlin-renderer TILE patch enabled.










Sheet 4: Marlin42
score 74.000
05/03/14
Min duration per test = 5000 ms – Oracle JDK1.8.0_05-b13 (heap=2g)
Marlin-0.4.2










test threads ops Tavg Tmed stdDev rms Med+Stddev min max TotalOps [ms/op]
dc_boulder_2013-13-30-06-13-17.ser 1 86 59.904 59.811 0.349 59.812 60.16 59.304 68.371 86
dc_boulder_2013-13-30-06-13-17.ser 2 172 63.75 63.699 0.808 63.704 64.507 63.203 72.977 172
dc_boulder_2013-13-30-06-13-17.ser 4 344 66.845 66.821 1.28 66.833 68.101 65.442 76.611 344
dc_boulder_2013-13-30-06-13-20.ser 1 275 19.053 19.002 0.211 19.004 19.213 18.782 33.116 275
dc_boulder_2013-13-30-06-13-20.ser 2 550 20.187 20.154 0.806 20.17 20.96 19.858 38.941 550
dc_boulder_2013-13-30-06-13-20.ser 4 1100 21.12 21.107 1.13 21.137 22.237 18.887 38.023 1100
dc_shp_alllayers_2013-00-30-07-00-43.ser 1 274 18.776 18.741 0.193 18.742 18.934 18.589 28.428 274
dc_shp_alllayers_2013-00-30-07-00-43.ser 2 548 19.697 19.68 0.47 19.685 20.15 18.964 30.155 548
dc_shp_alllayers_2013-00-30-07-00-43.ser 4 1096 20.845 20.837 0.812 20.852 21.648 18.651 32.523 1096
dc_shp_alllayers_2013-00-30-07-00-47.ser 1 25 428.599 428.599 0.527 428.599 429.126 426.948 430.265 25
dc_shp_alllayers_2013-00-30-07-00-47.ser 2 50 469.667 469.604 1.73 469.607 471.334 466.247 476.144 50
dc_shp_alllayers_2013-00-30-07-00-47.ser 4 100 486.906 486.826 3.611 486.839 490.437 480.532 501.172 100
dc_spearfish_2013-11-30-06-11-15.ser 1 667 7.101 7.099 0.132 7.101 7.231 7.033 8.467 667
dc_spearfish_2013-11-30-06-11-15.ser 2 1334 7.649 7.649 0.095 7.65 7.744 7.124 8.108 1334
dc_spearfish_2013-11-30-06-11-15.ser 4 2668 7.951 7.947 0.286 7.952 8.233 7.058 17.76 2668
dc_spearfish_2013-11-30-06-11-19.ser 1 1436 3.644 3.643 0.051 3.644 3.694 3.607 4.13 1436
dc_spearfish_2013-11-30-06-11-19.ser 2 2872 3.878 3.878 0.041 3.878 3.919 3.647 4.125 2872
dc_spearfish_2013-11-30-06-11-19.ser 4 5744 4.05 4.049 0.178 4.053 4.226 3.617 13.632 5744
dc_topp:states_2013-11-30-06-11-06.ser 1 799 6.56 6.559 0.083 6.56 6.642 6.505 7.207 799
dc_topp:states_2013-11-30-06-11-06.ser 2 1598 6.911 6.911 0.072 6.911 6.983 6.545 7.273 1598
dc_topp:states_2013-11-30-06-11-06.ser 4 3196 7.254 7.251 0.25 7.255 7.501 6.54 16.95 3196
dc_topp:states_2013-11-30-06-11-07.ser 1 1307 4.025 4.024 0.053 4.025 4.077 3.984 4.594 1307
dc_topp:states_2013-11-30-06-11-07.ser 2 2614 4.253 4.253 0.048 4.253 4.301 4.005 4.492 2614
dc_topp:states_2013-11-30-06-11-07.ser 4 5228 4.452 4.451 0.192 4.455 4.643 4.019 14.088 5228












score small 1 692 17.009 16.983 0.153 16.984 17.136 16.829 22.045

2 1384 18.046 18.032 0.334 18.036 18.366 17.621 23.724

4 2768 18.931 18.923 0.590 18.934 19.513 17.745 29.941













score big 1 25 428.599 428.599 0.527 428.599 429.126 426.948 430.265

2 50 469.667 469.604 1.730 469.607 471.334 466.247 476.144

4 100 486.906 486.826 3.611 486.839 490.437 480.532 501.172













##############################################################





# Java: 1.8.0_05-b13





# VM: Java HotSpot(TM) 64-Bit Server VM 25.5-b02 (mixed mode)





# OS: Linux 3.8.0-35-generic (amd64)





# CPUs: 4 (virtual)





##############################################################





Loading profile file: /home/llooo/marlin/mapbench/bin/../profiles/sharedImage.properties





Profile properties (merged with defaults):





doClip=false










doCreateStrokedShape=false










doRotate=false










doScale=false










doShear=false










doUseWingRuleEvenOdd=false










maxThreads=4










minDuration=5000.0










minLoops=25










pass=1










rotateAngle=17.333










scale=4.0










scaleX=4.0










scaleY=4.0










shearX=2.0










shearY=2.0










useSharedImage=true










##############################################################










# Min duration per test = 5000.0 ms.










##############################################################










INFO: ===============================================================================










INFO: Marlin software rasterizer = ENABLED










INFO: Version = [marlin-0.4.2]










INFO: sun.java2d.renderer = org.marlin.pisces.PiscesRenderingEngine










INFO: sun.java2d.renderer.useThreadLocal = false










INFO: sun.java2d.renderer.useRef = soft










INFO: sun.java2d.renderer.pixelsize = 2048










INFO: sun.java2d.renderer.subPixel_log2_X = 3










INFO: sun.java2d.renderer.subPixel_log2_Y = 3










INFO: sun.java2d.renderer.tileSize_log2 = 5










INFO: sun.java2d.renderer.useFastMath = true










INFO: sun.java2d.renderer.useSimplifier = false










INFO: sun.java2d.renderer.doStats = false










INFO: sun.java2d.renderer.doMonitors = false










INFO: sun.java2d.renderer.doChecks = false










INFO: sun.java2d.renderer.useJul = false










INFO: sun.java2d.renderer.logCreateContext = false










INFO: sun.java2d.renderer.logUnsafeMalloc = false










INFO: ===============================================================================










INFO: AAShapePipe: overriding JDK implementation: marlin-renderer TILE patch enabled.










Sheet 5: Marlin44
score 71.678
05/03/14
Min duration per test = 5000 ms – Oracle JDK1.8.0_05-b13 (heap=2g)
Marlin-0.4.4










test threads ops Tavg Tmed stdDev rms Med+Stddev min max TotalOps [ms/op]
dc_boulder_2013-13-30-06-13-17.ser 1 95 54.748 54.663 0.437 54.665 55.1 54.186 63.226 95
dc_boulder_2013-13-30-06-13-17.ser 2 190 58.376 58.331 0.814 58.336 59.145 57.762 67.548 190
dc_boulder_2013-13-30-06-13-17.ser 4 380 61.084 61.053 1.348 61.068 62.401 59.187 74.63 380
dc_boulder_2013-13-30-06-13-20.ser 1 297 17.765 17.716 0.167 17.717 17.883 17.548 32.499 297
dc_boulder_2013-13-30-06-13-20.ser 2 594 18.722 18.69 0.781 18.706 19.47 18.469 37.905 594
dc_boulder_2013-13-30-06-13-20.ser 4 1188 19.776 19.762 1.08 19.792 20.842 18.738 37.058 1188
dc_shp_alllayers_2013-00-30-07-00-43.ser 1 331 15.895 15.868 0.165 15.869 16.032 15.739 25.123 331
dc_shp_alllayers_2013-00-30-07-00-43.ser 2 662 16.75 16.735 0.445 16.741 17.179 16.152 27.354 662
dc_shp_alllayers_2013-00-30-07-00-43.ser 4 1324 17.723 17.716 0.777 17.733 18.493 15.883 29.248 1324
dc_shp_alllayers_2013-00-30-07-00-47.ser 1 25 419.443 419.395 0.71 419.395 420.105 417.218 422.783 25
dc_shp_alllayers_2013-00-30-07-00-47.ser 2 50 461.494 461.392 1.705 461.395 463.097 459.791 468.118 50
dc_shp_alllayers_2013-00-30-07-00-47.ser 4 100 479.038 478.962 3.016 478.971 481.977 474.146 491.432 100
dc_spearfish_2013-11-30-06-11-15.ser 1 666 7.031 7.03 0.12 7.031 7.15 6.958 8.14 666
dc_spearfish_2013-11-30-06-11-15.ser 2 1332 7.566 7.566 0.09 7.566 7.656 7.197 7.955 1332
dc_spearfish_2013-11-30-06-11-15.ser 4 2664 7.87 7.867 0.333 7.874 8.2 7.004 17.704 2664
dc_spearfish_2013-11-30-06-11-19.ser 1 1453 3.627 3.626 0.056 3.627 3.683 3.589 4.131 1453
dc_spearfish_2013-11-30-06-11-19.ser 2 2906 3.853 3.853 0.049 3.853 3.902 3.602 4.132 2906
dc_spearfish_2013-11-30-06-11-19.ser 4 5812 4.025 4.024 0.198 4.028 4.222 3.598 13.79 5812
dc_topp:states_2013-11-30-06-11-06.ser 1 812 6.512 6.511 0.081 6.511 6.592 6.449 7.203 812
dc_topp:states_2013-11-30-06-11-06.ser 2 1624 6.838 6.838 0.093 6.838 6.931 6.758 7.261 1624
dc_topp:states_2013-11-30-06-11-06.ser 4 3248 7.16 7.157 0.279 7.162 7.436 6.476 18.58 3248
dc_topp:states_2013-11-30-06-11-07.ser 1 1336 3.943 3.943 0.054 3.943 3.997 3.904 4.449 1336
dc_topp:states_2013-11-30-06-11-07.ser 2 2672 4.163 4.163 0.044 4.163 4.207 4.125 4.453 2672
dc_topp:states_2013-11-30-06-11-07.ser 4 5344 4.359 4.357 0.204 4.362 4.561 3.953 15.035 5344












score small 1 713 15.646 15.622 0.154 15.623 15.777 15.482 20.682

2 1426 16.610 16.597 0.331 16.600 16.927 16.295 22.373

4 2851 17.428 17.419 0.603 17.431 18.022 16.406 29.435













score big 1 25 419.443 419.395 0.710 419.395 420.105 417.218 422.783

2 50 461.494 461.392 1.705 461.395 463.097 459.791 468.118

4 100 479.038 478.962 3.016 478.971 481.977 474.146 491.432













##############################################################





# Java: 1.8.0_05-b13





# VM: Java HotSpot(TM) 64-Bit Server VM 25.5-b02 (mixed mode)





# OS: Linux 3.8.0-35-generic (amd64)





# CPUs: 4 (virtual)





##############################################################





Loading profile file: /home/llooo/marlin/mapbench/bin/../profiles/sharedImage.properties





Profile properties (merged with defaults):





doClip=false










doCreateStrokedShape=false










doRotate=false










doScale=false










doShear=false










doUseWingRuleEvenOdd=false










maxThreads=4










minDuration=5000.0










minLoops=25










pass=1










rotateAngle=17.333










scale=4.0










scaleX=4.0










scaleY=4.0










shearX=2.0










shearY=2.0










useSharedImage=true










##############################################################










# Min duration per test = 5000.0 ms.










##############################################################










INFO: ===============================================================================










INFO: Marlin software rasterizer = ENABLED










INFO: Version = [marlin-0.4.2]










INFO: sun.java2d.renderer = org.marlin.pisces.PiscesRenderingEngine










INFO: sun.java2d.renderer.useThreadLocal = false










INFO: sun.java2d.renderer.useRef = soft










INFO: sun.java2d.renderer.pixelsize = 2048










INFO: sun.java2d.renderer.subPixel_log2_X = 3










INFO: sun.java2d.renderer.subPixel_log2_Y = 3










INFO: sun.java2d.renderer.tileSize_log2 = 5










INFO: sun.java2d.renderer.useFastMath = true










INFO: sun.java2d.renderer.useSimplifier = false










INFO: sun.java2d.renderer.doStats = false










INFO: sun.java2d.renderer.doMonitors = false










INFO: sun.java2d.renderer.doChecks = false










INFO: sun.java2d.renderer.useJul = false










INFO: sun.java2d.renderer.logCreateContext = false










INFO: sun.java2d.renderer.logUnsafeMalloc = false










INFO: ===============================================================================










INFO: AAShapePipe: overriding JDK implementation: marlin-renderer TILE patch enabled.










Sheet 6: Marlin52
score 70.805
05/03/14
Min duration per test = 5000 ms – Oracle JDK1.8.0_05-b13 (heap=2g)
Marlin-0.5.2










test threads ops Tavg Tmed stdDev rms Med+Stddev min max TotalOps [ms/op]
dc_boulder_2013-13-30-06-13-17.ser 1 90 58.512 58.42 0.407 58.421 58.827 57.902 67.2 90
dc_boulder_2013-13-30-06-13-17.ser 2 180 62.251 62.198 0.819 62.204 63.018 61.782 72.078 180
dc_boulder_2013-13-30-06-13-17.ser 4 360 65.369 65.341 1.367 65.355 66.708 62.978 77.798 360
dc_boulder_2013-13-30-06-13-20.ser 1 286 18.516 18.468 0.189 18.469 18.658 18.313 32.224 286
dc_boulder_2013-13-30-06-13-20.ser 2 572 19.566 19.535 0.766 19.55 20.301 19.301 37.459 572
dc_boulder_2013-13-30-06-13-20.ser 4 1144 20.589 20.577 1.046 20.603 21.623 18.619 36.987 1144
dc_shp_alllayers_2013-00-30-07-00-43.ser 1 271 18.731 18.697 0.175 18.698 18.872 18.541 27.94 271
dc_shp_alllayers_2013-00-30-07-00-43.ser 2 542 19.682 19.665 0.468 19.671 20.133 18.815 29.774 542
dc_shp_alllayers_2013-00-30-07-00-43.ser 4 1084 20.772 20.764 0.794 20.779 21.558 18.611 31.977 1084
dc_shp_alllayers_2013-00-30-07-00-47.ser 1 25 403.893 403.884 1.253 403.886 405.137 401.599 406.391 25
dc_shp_alllayers_2013-00-30-07-00-47.ser 2 50 449.119 449.074 1.652 449.077 450.727 445.397 455.006 50
dc_shp_alllayers_2013-00-30-07-00-47.ser 4 100 463.864 463.691 3.275 463.703 466.966 453.688 490.973 100
dc_spearfish_2013-11-30-06-11-15.ser 1 691 6.787 6.785 0.121 6.786 6.906 6.712 8.005 691
dc_spearfish_2013-11-30-06-11-15.ser 2 1382 7.299 7.299 0.092 7.3 7.392 6.778 7.738 1382
dc_spearfish_2013-11-30-06-11-15.ser 4 2764 7.61 7.606 0.277 7.611 7.883 6.736 17.297 2764
dc_spearfish_2013-11-30-06-11-19.ser 1 1498 3.516 3.516 0.051 3.516 3.567 3.483 4.019 1498
dc_spearfish_2013-11-30-06-11-19.ser 2 2996 3.746 3.746 0.046 3.747 3.793 3.508 3.973 2996
dc_spearfish_2013-11-30-06-11-19.ser 4 5992 3.912 3.911 0.181 3.915 4.092 3.495 13.469 5992
dc_topp:states_2013-11-30-06-11-06.ser 1 824 6.403 6.402 0.083 6.403 6.485 6.344 7.032 824
dc_topp:states_2013-11-30-06-11-06.ser 2 1648 6.735 6.735 0.075 6.735 6.809 6.623 7.109 1648
dc_topp:states_2013-11-30-06-11-06.ser 4 3296 7.062 7.059 0.246 7.064 7.305 6.369 16.925 3296
dc_topp:states_2013-11-30-06-11-07.ser 1 1357 3.872 3.872 0.053 3.872 3.925 3.839 4.39 1357
dc_topp:states_2013-11-30-06-11-07.ser 2 2714 4.098 4.098 0.052 4.098 4.15 3.854 4.346 2714
dc_topp:states_2013-11-30-06-11-07.ser 4 5428 4.291 4.289 0.191 4.294 4.481 3.868 14.124 5428












score small 1 717 16.620 16.594 0.154 16.595 16.749 16.448 21.544

2 1433 17.625 17.611 0.331 17.615 17.942 17.237 23.211

4 2867 18.515 18.507 0.586 18.517 19.093 17.239 29.797













score big 1 25 403.893 403.884 1.253 403.886 405.137 401.599 406.391

2 50 449.119 449.074 1.652 449.077 450.727 445.397 455.006

4 100 463.864 463.691 3.275 463.703 466.966 453.688 490.973













##############################################################





# Java: 1.8.0_05-b13





# VM: Java HotSpot(TM) 64-Bit Server VM 25.5-b02 (mixed mode)





# OS: Linux 3.8.0-35-generic (amd64)





# CPUs: 4 (virtual)





##############################################################





Loading profile file: /home/llooo/marlin/mapbench/bin/../profiles/sharedImage.properties





Profile properties (merged with defaults):





doClip=false










doCreateStrokedShape=false










doRotate=false










doScale=false










doShear=false










doUseWingRuleEvenOdd=false










maxThreads=4










minDuration=5000.0










minLoops=25










pass=1










rotateAngle=17.333










scale=4.0










scaleX=4.0










scaleY=4.0










shearX=2.0










shearY=2.0










useSharedImage=true










##############################################################










# Min duration per test = 5000.0 ms.










##############################################################










INFO: ===============================================================================










INFO: Marlin software rasterizer = ENABLED










INFO: Version = [marlin-0.5.2-Unsafe]










INFO: sun.java2d.renderer = org.marlin.pisces.PiscesRenderingEngine










INFO: sun.java2d.renderer.useThreadLocal = false










INFO: sun.java2d.renderer.useRef = soft










INFO: sun.java2d.renderer.pixelsize = 2048










INFO: sun.java2d.renderer.subPixel_log2_X = 3










INFO: sun.java2d.renderer.subPixel_log2_Y = 3










INFO: sun.java2d.renderer.tileSize_log2 = 5










INFO: sun.java2d.renderer.useFastMath = true










INFO: sun.java2d.renderer.useSimplifier = false










INFO: sun.java2d.renderer.doStats = false










INFO: sun.java2d.renderer.doMonitors = false










INFO: sun.java2d.renderer.doChecks = false










INFO: sun.java2d.renderer.useJul = false










INFO: sun.java2d.renderer.logCreateContext = false










INFO: sun.java2d.renderer.logUnsafeMalloc = false










INFO: ===============================================================================










INFO: AAShapePipe: overriding JDK implementation: marlin-renderer TILE patch enabled.










INFO: ===============================================================================










INFO: Using sun.misc.Unsafe: No warranty (may crash your JVM) !










INFO: USE IT AT YOUR OWN RISKS.










INFO: ===============================================================================










Sheet 7: Marlin53
score 70.418
05/03/14
Min duration per test = 5000 ms – Oracle JDK1.8.0_05-b13 (heap=2g)
Marlin-0.5.3










test threads ops Tavg Tmed stdDev rms Med+Stddev min max TotalOps [ms/op]
dc_boulder_2013-13-30-06-13-17.ser 1 91 57.357 57.272 0.339 57.273 57.611 56.808 65.496 91
dc_boulder_2013-13-30-06-13-17.ser 2 182 61.157 61.11 0.774 61.115 61.884 60.435 70.428 182
dc_boulder_2013-13-30-06-13-17.ser 4 364 63.915 63.889 1.365 63.903 65.254 62.588 74.525 364
dc_boulder_2013-13-30-06-13-20.ser 1 292 18.068 18.02 0.2 18.021 18.22 17.842 32.148 292
dc_boulder_2013-13-30-06-13-20.ser 2 584 19.072 19.042 0.762 19.058 19.804 18.124 37.029 584
dc_boulder_2013-13-30-06-13-20.ser 4 1168 20.095 20.083 1.066 20.111 21.149 18.093 36.518 1168
dc_shp_alllayers_2013-00-30-07-00-43.ser 1 285 18.002 17.971 0.176 17.971 18.147 17.839 27.137 285
dc_shp_alllayers_2013-00-30-07-00-43.ser 2 570 19.095 19.078 0.461 19.084 19.539 18.813 29.189 570
dc_shp_alllayers_2013-00-30-07-00-43.ser 4 1140 20.086 20.077 0.77 20.092 20.847 18.092 31.406 1140
dc_shp_alllayers_2013-00-30-07-00-47.ser 1 25 404.612 404.583 0.759 404.584 405.342 402.858 407.019 25
dc_shp_alllayers_2013-00-30-07-00-47.ser 2 50 446.603 446.46 2.043 446.464 448.503 443.749 456.353 50
dc_shp_alllayers_2013-00-30-07-00-47.ser 4 100 463.857 463.755 3.429 463.768 467.184 458.909 478.775 100
dc_spearfish_2013-11-30-06-11-15.ser 1 707 6.787 6.785 0.117 6.786 6.903 6.719 7.846 707
dc_spearfish_2013-11-30-06-11-15.ser 2 1414 7.321 7.322 0.085 7.322 7.406 6.763 7.688 1414
dc_spearfish_2013-11-30-06-11-15.ser 4 2828 7.606 7.602 0.245 7.606 7.847 7.234 18.567 2828
dc_spearfish_2013-11-30-06-11-19.ser 1 1486 3.523 3.522 0.048 3.523 3.57 3.49 3.996 1486
dc_spearfish_2013-11-30-06-11-19.ser 2 2972 3.744 3.744 0.039 3.744 3.783 3.678 3.947 2972
dc_spearfish_2013-11-30-06-11-19.ser 4 5944 3.917 3.915 0.172 3.919 4.087 3.512 13.376 5944
dc_topp:states_2013-11-30-06-11-06.ser 1 814 6.368 6.367 0.082 6.368 6.449 6.302 7.021 814
dc_topp:states_2013-11-30-06-11-06.ser 2 1628 6.685 6.685 0.073 6.685 6.758 6.38 7.012 1628
dc_topp:states_2013-11-30-06-11-06.ser 4 3256 7.022 7.02 0.247 7.024 7.267 6.337 16.63 3256
dc_topp:states_2013-11-30-06-11-07.ser 1 1360 3.861 3.86 0.053 3.861 3.913 3.815 4.369 1360
dc_topp:states_2013-11-30-06-11-07.ser 2 2720 4.071 4.071 0.043 4.071 4.114 3.837 4.328 2720
dc_topp:states_2013-11-30-06-11-07.ser 4 5440 4.262 4.261 0.192 4.265 4.452 3.828 13.81 5440












score small 1 719 16.281 16.257 0.145 16.258 16.402 16.116 21.145

2 1439 17.306 17.293 0.320 17.297 17.613 16.861 22.803

4 2877 18.129 18.121 0.580 18.131 18.700 17.098 29.262













score big 1 25 404.612 404.583 0.759 404.584 405.342 402.858 407.019

2 50 446.603 446.460 2.043 446.464 448.503 443.749 456.353

4 100 463.857 463.755 3.429 463.768 467.184 458.909 478.775













##############################################################





# Java: 1.8.0_05-b13





# VM: Java HotSpot(TM) 64-Bit Server VM 25.5-b02 (mixed mode)





# OS: Linux 3.8.0-35-generic (amd64)





# CPUs: 4 (virtual)





##############################################################





Loading profile file: /home/llooo/marlin/mapbench/bin/../profiles/sharedImage.properties





Profile properties (merged with defaults):





doClip=false










doCreateStrokedShape=false










doRotate=false










doScale=false










doShear=false










doUseWingRuleEvenOdd=false










maxThreads=4










minDuration=5000.0










minLoops=25










pass=1










rotateAngle=17.333










scale=4.0










scaleX=4.0










scaleY=4.0










shearX=2.0










shearY=2.0










useSharedImage=true










##############################################################










# Min duration per test = 5000.0 ms.










##############################################################










INFO: ===============================================================================










INFO: Marlin software rasterizer = ENABLED










INFO: Version = [marlin-0.5.3-Unsafe]










INFO: sun.java2d.renderer = org.marlin.pisces.PiscesRenderingEngine










INFO: sun.java2d.renderer.useThreadLocal = false










INFO: sun.java2d.renderer.useRef = soft










INFO: sun.java2d.renderer.pixelsize = 2048










INFO: sun.java2d.renderer.subPixel_log2_X = 3










INFO: sun.java2d.renderer.subPixel_log2_Y = 3










INFO: sun.java2d.renderer.tileSize_log2 = 5










INFO: sun.java2d.renderer.useFastMath = true










INFO: sun.java2d.renderer.useSimplifier = false










INFO: sun.java2d.renderer.doStats = false










INFO: sun.java2d.renderer.doMonitors = false










INFO: sun.java2d.renderer.doChecks = false










INFO: sun.java2d.renderer.useJul = false










INFO: sun.java2d.renderer.logCreateContext = false










INFO: sun.java2d.renderer.logUnsafeMalloc = false










INFO: sun.java2d.renderer.binarysearch.threshold = 20










INFO: ===============================================================================










INFO: AAShapePipe: overriding JDK implementation: marlin-renderer TILE patch enabled.










INFO: ===============================================================================










INFO: Using sun.misc.Unsafe: No warranty (may crash your JVM) !










INFO: USE IT AT YOUR OWN RISKS.










INFO: ===============================================================================










Sheet 8: Marlin54
score 69.600
05/11/14
Min duration per test = 5000 ms – Oracle JDK1.8.0_05-b13 (heap=2g)
Marlin-0.5.4










test threads ops Tavg Tmed stdDev rms Med+Stddev min max TotalOps [ms/op]
dc_boulder_2013-13-30-06-13-17.ser 1 99 52.775 52.691 0.452 52.693 53.143 52.264 61.399 99
dc_boulder_2013-13-30-06-13-17.ser 2 198 56.504 56.461 0.825 56.467 57.286 55.956 65.412 198
dc_boulder_2013-13-30-06-13-17.ser 4 396 58.934 58.914 1.269 58.927 60.183 57.013 68.99 396
dc_boulder_2013-13-30-06-13-20.ser 1 308 17.147 17.099 0.16 17.1 17.259 16.963 31.904 308
dc_boulder_2013-13-30-06-13-20.ser 2 616 18.138 18.109 0.753 18.124 18.862 17.857 36.754 616
dc_boulder_2013-13-30-06-13-20.ser 4 1232 19.119 19.107 1.061 19.136 20.168 17.112 35.806 1232
dc_shp_alllayers_2013-00-30-07-00-43.ser 1 340 15.386 15.359 0.181 15.36 15.54 15.243 24.556 340
dc_shp_alllayers_2013-00-30-07-00-43.ser 2 680 16.309 16.295 0.428 16.3 16.723 16.114 26.516 680
dc_shp_alllayers_2013-00-30-07-00-43.ser 4 1360 17.183 17.176 0.724 17.191 17.9 15.4 28.41 1360
dc_shp_alllayers_2013-00-30-07-00-47.ser 1 25 405.497 405.478 0.898 405.479 406.376 403.819 407.615 25
dc_shp_alllayers_2013-00-30-07-00-47.ser 2 50 451.014 450.965 2.346 450.971 453.311 444.233 460.121 50
dc_shp_alllayers_2013-00-30-07-00-47.ser 4 100 463.612 463.573 3.476 463.586 467.05 455.771 475.273 100
dc_spearfish_2013-11-30-06-11-15.ser 1 695 6.862 6.86 0.138 6.862 6.999 6.776 8.025 695
dc_spearfish_2013-11-30-06-11-15.ser 2 1390 7.355 7.355 0.084 7.355 7.439 6.859 7.861 1390
dc_spearfish_2013-11-30-06-11-15.ser 4 2780 7.66 7.657 0.282 7.662 7.938 6.8 17.597 2780
dc_spearfish_2013-11-30-06-11-19.ser 1 1484 3.552 3.551 0.056 3.552 3.607 3.511 4.015 1484
dc_spearfish_2013-11-30-06-11-19.ser 2 2968 3.764 3.764 0.045 3.764 3.808 3.526 4.075 2968
dc_spearfish_2013-11-30-06-11-19.ser 4 5936 3.934 3.933 0.176 3.937 4.109 3.537 13.882 5936
dc_topp:states_2013-11-30-06-11-06.ser 1 832 6.321 6.321 0.083 6.321 6.403 6.269 6.975 832
dc_topp:states_2013-11-30-06-11-06.ser 2 1664 6.635 6.634 0.073 6.635 6.707 6.466 7.076 1664
dc_topp:states_2013-11-30-06-11-06.ser 4 3328 6.973 6.971 0.257 6.975 7.227 6.291 17.049 3328
dc_topp:states_2013-11-30-06-11-07.ser 1 1361 3.831 3.831 0.047 3.831 3.878 3.798 4.208 1361
dc_topp:states_2013-11-30-06-11-07.ser 2 2722 4.038 4.038 0.046 4.038 4.084 3.869 4.3 2722
dc_topp:states_2013-11-30-06-11-07.ser 4 5444 4.231 4.23 0.166 4.233 4.396 3.826 14.029 5444












score small 1 731 15.125 15.102 0.160 15.103 15.261 14.975 20.155

2 1463 16.106 16.094 0.322 16.098 16.416 15.807 21.713

4 2925 16.862 16.855 0.562 16.866 17.417 15.711 27.966













score big 1 25 405.497 405.478 0.898 405.479 406.376 403.819 407.615

2 50 451.014 450.965 2.346 450.971 453.311 444.233 460.121

4 100 463.612 463.573 3.476 463.586 467.050 455.771 475.273













##############################################################





# Java: 1.8.0_05-b13





# VM: Java HotSpot(TM) 64-Bit Server VM 25.5-b02 (mixed mode)





# OS: Linux 3.8.0-35-generic (amd64)





# CPUs: 4 (virtual)





##############################################################





Loading profile file: /home/llooo/marlin/mapbench/bin/../profiles/sharedImage.properties





Profile properties (merged with defaults):





doClip=false










doCreateStrokedShape=false










doRotate=false










doScale=false










doShear=false










doUseWingRuleEvenOdd=false










maxThreads=4










minDuration=5000.0










minLoops=25










pass=1










rotateAngle=17.333










scaleX=4.0










scaleY=4.0










shearX=2.0










shearY=2.0










useSharedImage=true










##############################################################










# Min duration per test = 5000.0 ms.










##############################################################










INFO: ===============================================================================










INFO: Marlin software rasterizer = ENABLED










INFO: Version = [marlin-0.5.4-Unsafe]










INFO: sun.java2d.renderer = org.marlin.pisces.PiscesRenderingEngine










INFO: sun.java2d.renderer.useThreadLocal = false










INFO: sun.java2d.renderer.useRef = soft










INFO: sun.java2d.renderer.pixelsize = 2048










INFO: sun.java2d.renderer.subPixel_log2_X = 3










INFO: sun.java2d.renderer.subPixel_log2_Y = 3










INFO: sun.java2d.renderer.tileSize_log2 = 5










INFO: sun.java2d.renderer.useFastMath = true










INFO: sun.java2d.renderer.useSimplifier = false










INFO: sun.java2d.renderer.doStats = false










INFO: sun.java2d.renderer.doMonitors = false










INFO: sun.java2d.renderer.doChecks = false










INFO: sun.java2d.renderer.useJul = false










INFO: sun.java2d.renderer.logCreateContext = false










INFO: sun.java2d.renderer.logUnsafeMalloc = false










INFO: ===============================================================================










INFO: AAShapePipe: overriding JDK implementation: marlin-renderer TILE patch enabled.










INFO: ===============================================================================










INFO: Using sun.misc.Unsafe: No warranty (may crash your JVM) !










INFO: USE IT AT YOUR OWN RISKS.










INFO: ===============================================================================










INFO: ===============================================================================










Sheet 9: Marlin30_vs_41
score 101.18%





















test threads ops Tavg Tmed stdDev rms Med+Stddev min max

boulder_17 1 81 106.30% 106.28% 139.60% 106.28% 106.44% 106.41% 106.78%

boulder_17 2 162 105.76% 105.76% 83.30% 105.76% 105.45% 107.92% 103.40%

boulder_17 4 324 107.07% 107.07% 178.46% 107.13% 108.85% 105.31% 109.07%

boulder_20 1 253 106.15% 106.14% 118.79% 106.14% 106.24% 106.07% 105.12%

boulder_20 2 506 105.66% 105.66% 102.47% 105.66% 105.54% 106.07% 103.75%

boulder_20 4 1012 106.11% 106.10% 111.31% 106.11% 106.35% 106.54% 112.86%

shp_alllayers_43 1 272 110.17% 110.17% 144.06% 110.18% 110.52% 109.97% 106.60%

shp_alllayers_43 2 544 110.10% 110.11% 107.13% 110.10% 110.03% 109.05% 107.08%

shp_alllayers_43 4 1088 109.88% 109.88% 106.50% 109.87% 109.76% 110.14% 106.59%

shp_alllayers_47 1 25 98.76% 98.72% 166.19% 98.72% 98.78% 98.55% 99.68%

shp_alllayers_47 2 50 100.59% 100.59% 117.34% 100.59% 100.63% 100.56% 100.80%

shp_alllayers_47 4 100 100.15% 100.15% 101.39% 100.15% 100.16% 100.05% 100.69%

spearfish_15 1 639 99.15% 99.14% 96.95% 99.14% 99.10% 99.12% 99.10%

spearfish_15 2 1278 99.46% 99.46% 102.38% 99.45% 99.48% 105.49% 99.21%

spearfish_15 4 2556 99.43% 99.45% 110.87% 99.45% 99.81% 98.61% 102.15%

spearfish_19 1 1432 99.27% 99.24% 101.92% 99.27% 99.31% 99.18% 98.73%

spearfish_19 2 2864 99.09% 99.09% 100.00% 99.09% 99.07% 98.65% 98.81%

spearfish_19 4 5728 99.32% 99.32% 113.97% 99.34% 99.95% 99.19% 103.59%

topp:states_06 1 796 101.47% 101.47% 92.86% 101.49% 101.36% 101.52% 100.73%

topp:states_06 2 1592 101.15% 101.15% 108.45% 101.17% 101.23% 100.85% 100.04%

topp:states_06 4 3184 101.42% 101.42% 124.70% 101.44% 102.18% 100.43% 103.94%

topp:states_07 1 1294 100.07% 100.07% 103.70% 100.07% 100.12% 100.10% 100.75%

topp:states_07 2 2588 100.21% 100.21% 112.50% 100.23% 100.39% 100.07% 99.91%

topp:states_07 4 5176 100.47% 100.47% 118.95% 100.51% 101.20% 100.25% 104.08%













score small 1 679.7142857143 105.79% 105.77% 123.43% 105.78% 105.91% 105.80% 105.32%

2 1359.4285714286 105.42% 105.42% 96.25% 105.42% 105.25% 106.77% 103.58%

4 2718.8571428572 106.16% 106.16% 137.69% 106.19% 107.18% 105.26% 107.74%













score big 1 25 98.76% 98.72% 166.19% 98.72% 98.78% 98.55% 99.68%

2 50 100.59% 100.59% 117.34% 100.59% 100.63% 100.56% 100.80%

4 100 100.15% 100.15% 101.39% 100.15% 100.16% 100.05% 100.69%


Sheet 10: Marlin41_vs_42
score 110.78%





















test threads ops Tavg Tmed stdDev rms Med+Stddev min max

boulder_17 1 86 106.02% 106.03% 85.39% 106.03% 105.91% 106.01% 104.56%

boulder_17 2 172 106.36% 106.37% 120.05% 106.37% 106.54% 104.14% 107.08%

boulder_17 4 344 106.15% 106.16% 141.80% 106.18% 106.83% 99.19% 107.39%

boulder_20 1 275 107.26% 107.28% 78.20% 107.27% 106.96% 107.45% 102.30%

boulder_20 2 550 107.04% 107.04% 100.62% 107.03% 106.79% 107.14% 101.80%

boulder_20 4 1100 107.49% 107.49% 100.97% 107.48% 107.16% 108.10% 102.40%

shp_alllayers_43 1 274 103.58% 103.58% 104.66% 103.58% 103.60% 103.63% 103.59%

shp_alllayers_43 2 548 103.76% 103.76% 101.49% 103.76% 103.71% 103.81% 101.57%

shp_alllayers_43 4 1096 103.71% 103.70% 100.49% 103.71% 103.59% 103.94% 101.62%

shp_alllayers_47 1 25 112.80% 112.80% 80.27% 112.80% 112.76% 113.04% 112.66%

shp_alllayers_47 2 50 112.12% 112.13% 85.66% 112.13% 112.04% 112.40% 111.49%

shp_alllayers_47 4 100 112.28% 112.28% 93.44% 112.28% 112.14% 112.28% 112.42%

spearfish_15 1 667 104.65% 104.66% 99.24% 104.65% 104.56% 104.52% 101.20%

spearfish_15 2 1334 104.05% 104.05% 88.42% 104.05% 103.86% 104.24% 103.66%

spearfish_15 4 2668 104.44% 104.44% 96.50% 104.44% 104.17% 104.83% 100.26%

spearfish_19 1 1436 101.65% 101.67% 101.96% 101.65% 101.65% 101.61% 101.36%

spearfish_19 2 2872 101.60% 101.60% 109.76% 101.60% 101.68% 101.43% 102.08%

spearfish_19 4 5744 101.60% 101.61% 100.56% 101.60% 101.56% 101.96% 98.83%

topp:states_06 1 799 100.43% 100.43% 101.20% 100.41% 100.44% 100.31% 100.93%

topp:states_06 2 1598 100.49% 100.49% 98.61% 100.49% 100.47% 100.47% 101.69%

topp:states_06 4 3196 100.29% 100.29% 98.80% 100.29% 100.24% 100.57% 99.03%

topp:states_07 1 1307 101.39% 101.39% 101.89% 101.39% 101.42% 101.41% 98.89%

topp:states_07 2 2614 100.80% 100.80% 100.00% 100.80% 100.77% 101.42% 101.58%

topp:states_07 4 5228 100.83% 100.81% 98.96% 100.81% 100.75% 100.50% 99.56%













score small 1 692 105.15% 105.16% 91.98% 105.16% 105.04% 105.17% 103.29%

2 1384 105.27% 105.27% 107.09% 105.27% 105.30% 104.22% 104.17%

4 2768 105.24% 105.24% 112.98% 105.25% 105.48% 101.77% 103.22%













score big 1 25 112.80% 112.80% 80.27% 112.80% 112.76% 113.04% 112.66%

2 50 112.12% 112.13% 85.66% 112.13% 112.04% 112.40% 111.49%

4 100 112.28% 112.28% 93.44% 112.28% 112.14% 112.28% 112.42%


Sheet 11: Marlin42_vs_44
score 103.24%





















test threads ops Tavg Tmed stdDev rms Med+Stddev min max

boulder_17 1 95 109.42% 109.42% 79.86% 109.42% 109.18% 109.45% 108.14%

boulder_17 2 190 109.21% 109.20% 99.26% 109.20% 109.07% 109.42% 108.04%

boulder_17 4 380 109.43% 109.45% 94.96% 109.44% 109.13% 110.57% 102.65%

boulder_20 1 297 107.25% 107.26% 126.35% 107.26% 107.44% 107.03% 101.90%

boulder_20 2 594 107.83% 107.83% 103.20% 107.83% 107.65% 107.52% 102.73%

boulder_20 4 1188 106.80% 106.81% 104.63% 106.80% 106.69% 100.80% 102.60%

shp_alllayers_43 1 331 118.13% 118.11% 116.97% 118.10% 118.10% 118.11% 113.16%

shp_alllayers_43 2 662 117.59% 117.60% 105.62% 117.59% 117.29% 117.41% 110.24%

shp_alllayers_43 4 1324 117.62% 117.62% 104.50% 117.59% 117.06% 117.43% 111.20%

shp_alllayers_47 1 25 102.18% 102.19% 74.23% 102.19% 102.15% 102.33% 101.77%

shp_alllayers_47 2 50 101.77% 101.78% 101.47% 101.78% 101.78% 101.40% 101.71%

shp_alllayers_47 4 100 101.64% 101.64% 119.73% 101.64% 101.76% 101.35% 101.98%

spearfish_15 1 667 101.00% 100.98% 110.00% 101.00% 101.13% 101.08% 104.02%

spearfish_15 2 1334 101.10% 101.10% 105.56% 101.11% 101.15% 98.99% 101.92%

spearfish_15 4 2668 101.03% 101.02% 85.89% 100.99% 100.40% 100.77% 100.32%

spearfish_19 1 1453 100.47% 100.47% 91.07% 100.47% 100.30% 100.50% 99.98%

spearfish_19 2 2906 100.65% 100.65% 83.67% 100.65% 100.44% 101.25% 99.83%

spearfish_19 4 5812 100.62% 100.62% 89.90% 100.62% 100.09% 100.53% 98.85%

topp:states_06 1 812 100.74% 100.74% 102.47% 100.75% 100.76% 100.87% 100.06%

topp:states_06 2 1624 101.07% 101.07% 77.42% 101.07% 100.75% 96.85% 100.17%

topp:states_06 4 3248 101.31% 101.31% 89.61% 101.30% 100.87% 100.99% 91.23%

topp:states_07 1 1336 102.08% 102.05% 98.15% 102.08% 102.00% 102.05% 103.26%

topp:states_07 2 2672 102.16% 102.16% 109.09% 102.16% 102.23% 97.09% 100.88%

topp:states_07 4 5344 102.13% 102.16% 94.12% 102.13% 101.80% 101.67% 93.70%













score small 1 712.8571428571 108.71% 108.71% 99.26% 108.71% 108.61% 108.70% 106.59%

2 1425.7142857143 108.65% 108.65% 101.04% 108.65% 108.50% 108.14% 106.04%

4 2851.4285714286 108.62% 108.63% 97.84% 108.62% 108.27% 108.16% 101.72%













score big 1 25 102.18% 102.19% 74.23% 102.19% 102.15% 102.33% 101.77%

2 50 101.77% 101.78% 101.47% 101.78% 101.78% 101.40% 101.71%

4 100 101.64% 101.64% 119.73% 101.64% 101.76% 101.35% 101.98%


Sheet 12: Marlin42_vs_52
score 104.51%





















test threads ops Tavg Tmed stdDev rms Med+Stddev min max

boulder_17 1 90 102.38% 102.38% 85.75% 102.38% 102.27% 102.42% 101.74%

boulder_17 2 180 102.41% 102.41% 98.66% 102.41% 102.36% 102.30% 101.25%

boulder_17 4 360 102.26% 102.27% 93.64% 102.26% 102.09% 103.91% 98.47%

boulder_20 1 286 102.90% 102.89% 111.64% 102.90% 102.97% 102.56% 102.77%

boulder_20 2 572 103.17% 103.17% 105.22% 103.17% 103.25% 102.89% 103.96%

boulder_20 4 1144 102.58% 102.58% 108.03% 102.59% 102.84% 101.44% 102.80%

shp_alllayers_43 1 274 100.24% 100.24% 110.29% 100.24% 100.33% 100.26% 101.75%

shp_alllayers_43 2 548 100.08% 100.08% 100.43% 100.07% 100.08% 100.79% 101.28%

shp_alllayers_43 4 1096 100.35% 100.35% 102.27% 100.35% 100.42% 100.21% 101.71%

shp_alllayers_47 1 25 106.12% 106.12% 42.06% 106.12% 105.92% 106.31% 105.87%

shp_alllayers_47 2 50 104.58% 104.57% 104.72% 104.57% 104.57% 104.68% 104.65%

shp_alllayers_47 4 100 104.97% 104.99% 110.26% 104.99% 105.03% 105.92% 102.08%

spearfish_15 1 691 104.63% 104.63% 109.09% 104.64% 104.71% 104.78% 105.77%

spearfish_15 2 1382 104.80% 104.80% 103.26% 104.79% 104.76% 105.10% 104.78%

spearfish_15 4 2764 104.48% 104.48% 103.25% 104.48% 104.44% 104.78% 102.68%

spearfish_19 1 1498 103.64% 103.61% 100.00% 103.64% 103.56% 103.56% 102.76%

spearfish_19 2 2996 103.52% 103.52% 89.13% 103.50% 103.32% 103.96% 103.83%

spearfish_19 4 5992 103.53% 103.53% 98.34% 103.52% 103.27% 103.49% 101.21%

topp:states_06 1 824 102.45% 102.45% 100.00% 102.45% 102.42% 102.54% 102.49%

topp:states_06 2 1648 102.61% 102.61% 96.00% 102.61% 102.56% 98.82% 102.31%

topp:states_06 4 3296 102.72% 102.72% 101.63% 102.70% 102.68% 102.68% 100.15%

topp:states_07 1 1357 103.95% 103.93% 100.00% 103.95% 103.87% 103.78% 104.65%

topp:states_07 2 2714 103.78% 103.78% 92.31% 103.78% 103.64% 103.92% 103.36%

topp:states_07 4 5428 103.75% 103.78% 100.52% 103.75% 103.62% 103.90% 99.75%













score small 1 716.7142857143 102.34% 102.34% 99.35% 102.34% 102.31% 102.32% 102.32%

2 1433.4285714286 102.39% 102.39% 100.95% 102.39% 102.36% 102.23% 102.21%

4 2866.8571428572 102.25% 102.25% 100.63% 102.25% 102.20% 102.93% 100.48%













score big 1 25 106.12% 106.12% 42.06% 106.12% 105.92% 106.31% 105.87%

2 50 104.58% 104.57% 104.72% 104.57% 104.57% 104.68% 104.65%

4 100 104.97% 104.99% 110.26% 104.99% 105.03% 105.92% 102.08%


Sheet 13: Marlin52_vs_53
score 100.55%





















test threads ops Tavg Tmed stdDev rms Med+Stddev min max

boulder_17 1 91 102.01% 102.00% 120.06% 102.00% 102.11% 101.93% 102.60%

boulder_17 2 182 101.79% 101.78% 105.81% 101.78% 101.83% 102.23% 102.34%

boulder_17 4 364 102.27% 102.27% 100.15% 102.27% 102.23% 100.62% 104.39%

boulder_20 1 292 102.48% 102.49% 94.50% 102.49% 102.40% 102.64% 100.24%

boulder_20 2 584 102.59% 102.59% 100.52% 102.58% 102.51% 106.49% 101.16%

boulder_20 4 1168 102.46% 102.46% 98.12% 102.45% 102.24% 102.91% 101.28%

shp_alllayers_43 1 285 104.05% 104.04% 99.43% 104.05% 104.00% 103.94% 102.96%

shp_alllayers_43 2 570 103.07% 103.08% 101.52% 103.08% 103.04% 100.01% 102.00%

shp_alllayers_43 4 1140 103.42% 103.42% 103.12% 103.42% 103.41% 102.87% 101.82%

shp_alllayers_47 1 25 99.82% 99.83% 165.09% 99.83% 99.95% 99.69% 99.85%

shp_alllayers_47 2 50 100.56% 100.59% 80.86% 100.59% 100.50% 100.37% 99.70%

shp_alllayers_47 4 100 100.00% 99.99% 95.51% 99.99% 99.95% 98.86% 102.55%

spearfish_15 1 707 100.00% 100.00% 103.42% 100.00% 100.04% 99.90% 102.03%

spearfish_15 2 1414 99.70% 99.69% 108.24% 99.70% 99.81% 100.22% 100.65%

spearfish_15 4 2828 100.05% 100.05% 113.06% 100.07% 100.46% 93.12% 93.16%

spearfish_19 1 1498 99.80% 99.83% 106.25% 99.80% 99.92% 99.80% 100.58%

spearfish_19 2 2996 100.05% 100.05% 117.95% 100.08% 100.26% 95.38% 100.66%

spearfish_19 4 5992 99.87% 99.90% 105.23% 99.90% 100.12% 99.52% 100.70%

topp:states_06 1 824 100.55% 100.55% 101.22% 100.55% 100.56% 100.67% 100.16%

topp:states_06 2 1648 100.75% 100.75% 102.74% 100.75% 100.75% 103.81% 101.38%

topp:states_06 4 3296 100.57% 100.56% 99.60% 100.57% 100.52% 100.50% 101.77%

topp:states_07 1 1360 100.28% 100.31% 100.00% 100.28% 100.31% 100.63% 100.48%

topp:states_07 2 2720 100.66% 100.66% 120.93% 100.66% 100.88% 100.44% 100.42%

topp:states_07 4 5440 100.68% 100.66% 99.48% 100.68% 100.65% 101.04% 102.27%













score small 1 719.2857142857 102.08% 102.08% 106.31% 102.08% 102.11% 102.06% 101.89%

2 1438.5714285714 101.84% 101.84% 103.62% 101.84% 101.87% 102.23% 101.79%

4 2877.1428571429 102.13% 102.13% 101.11% 102.13% 102.10% 100.83% 101.83%













score big 1 25 99.82% 99.83% 165.09% 99.83% 99.95% 99.69% 99.85%

2 50 100.56% 100.59% 80.86% 100.59% 100.50% 100.37% 99.70%

4 100 100.00% 99.99% 95.51% 99.99% 99.95% 98.86% 102.55%


Sheet 14: Marlin53_vs_54
score 101.18%





















test threads ops Tavg Tmed stdDev rms Med+Stddev min max

boulder_17 1 99 108.68% 108.69% 75.00% 108.69% 108.41% 108.69% 106.67%

boulder_17 2 198 108.23% 108.23% 93.82% 108.23% 108.03% 108.00% 107.67%

boulder_17 4 396 108.45% 108.44% 107.57% 108.44% 108.43% 109.78% 108.02%

boulder_20 1 308 105.37% 105.39% 125.00% 105.39% 105.57% 105.18% 100.76%

boulder_20 2 616 105.15% 105.15% 101.20% 105.15% 104.99% 101.50% 100.75%

boulder_20 4 1232 105.10% 105.11% 100.47% 105.10% 104.86% 105.73% 101.99%

shp_alllayers_43 1 340 117.00% 117.01% 97.24% 117.00% 116.78% 117.03% 110.51%

shp_alllayers_43 2 680 117.08% 117.08% 107.71% 117.08% 116.84% 116.75% 110.08%

shp_alllayers_43 4 1360 116.89% 116.89% 106.35% 116.88% 116.46% 117.48% 110.55%

shp_alllayers_47 1 25 99.78% 99.78% 84.52% 99.78% 99.75% 99.76% 99.85%

shp_alllayers_47 2 50 99.02% 99.00% 87.08% 99.00% 98.94% 99.89% 99.18%

shp_alllayers_47 4 100 100.05% 100.04% 98.65% 100.04% 100.03% 100.69% 100.74%

spearfish_15 1 707 98.91% 98.91% 84.78% 98.89% 98.63% 99.16% 97.77%

spearfish_15 2 1414 99.54% 99.55% 101.19% 99.55% 99.56% 98.60% 97.80%

spearfish_15 4 2828 99.30% 99.28% 86.88% 99.27% 98.85% 106.38% 105.51%

spearfish_19 1 1486 99.18% 99.18% 85.71% 99.18% 98.97% 99.40% 99.53%

spearfish_19 2 2972 99.47% 99.47% 86.67% 99.47% 99.34% 104.31% 96.86%

spearfish_19 4 5944 99.57% 99.54% 97.73% 99.54% 99.46% 99.29% 96.35%

topp:states_06 1 832 100.74% 100.73% 98.80% 100.74% 100.72% 100.53% 100.66%

topp:states_06 2 1664 100.75% 100.77% 100.00% 100.75% 100.76% 98.67% 99.10%

topp:states_06 4 3328 100.70% 100.70% 96.11% 100.70% 100.55% 100.73% 97.54%

topp:states_07 1 1361 100.78% 100.76% 112.77% 100.78% 100.90% 100.45% 103.83%

topp:states_07 2 2722 100.82% 100.82% 93.48% 100.82% 100.73% 99.17% 100.65%

topp:states_07 4 5444 100.73% 100.73% 115.66% 100.76% 101.27% 100.05% 98.44%













score small 1 731.2857142857 107.64% 107.65% 90.87% 107.65% 107.47% 107.62% 104.91%

2 1462.5714285714 107.45% 107.45% 99.25% 107.45% 107.29% 106.67% 105.02%

4 2925.1428571429 107.51% 107.51% 103.10% 107.50% 107.37% 108.82% 104.63%













score big 1 25 99.78% 99.78% 84.52% 99.78% 99.75% 99.76% 99.85%

2 50 99.02% 99.00% 87.08% 99.00% 98.94% 99.89% 99.18%

4 100 100.05% 100.04% 98.65% 100.04% 100.03% 100.69% 100.74%


Sheet 15: Marlin44_vs_54
score 102.99%





















test threads ops Tavg Tmed stdDev rms Med+Stddev min max

boulder_17 1 99 103.74% 103.74% 96.68% 103.74% 103.68% 103.68% 102.98%

boulder_17 2 198 103.31% 103.31% 98.67% 103.31% 103.25% 103.23% 103.27%

boulder_17 4 396 103.65% 103.63% 106.23% 103.63% 103.69% 103.81% 108.18%

boulder_20 1 308 103.60% 103.61% 104.38% 103.61% 103.62% 103.45% 101.86%

boulder_20 2 616 103.22% 103.21% 103.72% 103.21% 103.22% 103.43% 103.13%

boulder_20 4 1232 103.44% 103.43% 101.79% 103.43% 103.34% 109.50% 103.50%

shp_alllayers_43 1 340 103.31% 103.31% 91.16% 103.31% 103.17% 103.25% 102.31%

shp_alllayers_43 2 680 102.70% 102.70% 103.97% 102.71% 102.73% 100.24% 103.16%

shp_alllayers_43 4 1360 103.14% 103.14% 107.32% 103.15% 103.31% 103.14% 102.95%

shp_alllayers_47 1 25 103.44% 103.43% 79.06% 103.43% 103.38% 103.32% 103.72%

shp_alllayers_47 2 50 102.32% 102.31% 72.68% 102.31% 102.16% 103.50% 101.74%

shp_alllayers_47 4 100 103.33% 103.32% 86.77% 103.32% 103.20% 104.03% 103.40%

spearfish_15 1 695 102.46% 102.48% 86.96% 102.46% 102.16% 102.69% 101.43%

spearfish_15 2 1390 102.87% 102.87% 107.14% 102.87% 102.92% 104.93% 101.20%

spearfish_15 4 2780 102.74% 102.74% 118.09% 102.77% 103.30% 103.00% 100.61%

spearfish_19 1 1484 102.11% 102.11% 100.00% 102.11% 102.11% 102.22% 102.89%

spearfish_19 2 2968 102.36% 102.36% 108.89% 102.36% 102.47% 102.16% 101.40%

spearfish_19 4 5936 102.31% 102.31% 112.50% 102.31% 102.75% 101.72% 99.34%

topp:states_06 1 832 103.02% 103.01% 97.59% 103.01% 102.95% 102.87% 103.27%

topp:states_06 2 1664 103.06% 103.08% 127.40% 103.06% 103.34% 104.52% 102.61%

topp:states_06 4 3328 102.68% 102.67% 108.56% 102.68% 102.89% 102.94% 108.98%

topp:states_07 1 1361 102.92% 102.92% 114.89% 102.92% 103.07% 102.79% 105.73%

topp:states_07 2 2722 103.10% 103.10% 95.65% 103.10% 103.01% 106.62% 103.56%

topp:states_07 4 5444 103.03% 103.00% 122.89% 103.05% 103.75% 103.32% 107.17%













score small 1 731.2857142857 103.44% 103.45% 96.69% 103.45% 103.38% 103.39% 102.61%

2 1462.5714285714 103.13% 103.12% 102.75% 103.12% 103.12% 103.09% 103.04%

4 2925.1428571429 103.36% 103.35% 107.22% 103.35% 103.47% 104.42% 105.25%













score big 1 25 103.44% 103.43% 79.06% 103.43% 103.38% 103.32% 103.72%

2 50 102.32% 102.31% 72.68% 102.31% 102.16% 103.50% 101.74%

4 100 103.33% 103.32% 86.77% 103.32% 103.20% 104.03% 103.40%


Sheet 16: Marlin30_vs_54
score 119.17%





















test threads ops Tavg Tmed stdDev rms Med+Stddev min max

boulder_17 1 99 127.92% 127.92% 92.04% 127.91% 127.61% 128.00% 124.34%

boulder_17 2 198 126.92% 126.92% 97.94% 126.91% 126.50% 126.95% 123.53%

boulder_17 4 396 128.91% 128.92% 255.24% 129.01% 131.59% 119.90% 130.07%

boulder_20 1 308 126.51% 126.53% 122.50% 126.53% 126.50% 126.19% 111.62%

boulder_20 2 616 125.88% 125.88% 110.36% 125.86% 125.25% 126.38% 111.90%

boulder_20 4 1232 126.00% 125.98% 119.70% 125.96% 125.65% 127.12% 122.73%

shp_alllayers_43 1 340 139.26% 139.25% 160.77% 139.25% 139.50% 138.98% 127.84%

shp_alllayers_43 2 680 137.98% 137.98% 119.39% 137.97% 137.50% 133.23% 123.69%

shp_alllayers_43 4 1360 138.24% 138.24% 120.03% 138.21% 137.50% 138.64% 124.00%

shp_alllayers_47 1 25 117.74% 117.71% 78.29% 117.71% 117.62% 117.78% 118.54%

shp_alllayers_47 2 50 117.45% 117.45% 74.13% 117.45% 117.23% 118.63% 116.30%

shp_alllayers_47 4 100 118.10% 118.09% 98.42% 118.09% 117.94% 118.44% 119.36%

spearfish_15 1 695 107.37% 107.38% 92.03% 107.36% 107.06% 107.53% 105.82%

spearfish_15 2 1390 107.63% 107.63% 102.38% 107.63% 107.55% 114.21% 106.08%

spearfish_15 4 2780 107.79% 107.80% 108.51% 107.79% 107.84% 107.29% 103.36%

spearfish_19 1 1484 103.52% 103.52% 94.64% 103.52% 103.38% 103.53% 102.94%

spearfish_19 2 2968 103.72% 103.72% 100.00% 103.72% 103.68% 103.49% 102.11%

spearfish_19 4 5936 103.89% 103.89% 115.91% 103.91% 104.40% 103.42% 100.54%

topp:states_06 1 832 105.76% 105.74% 93.98% 105.76% 105.61% 105.66% 105.05%

topp:states_06 2 1664 105.88% 105.89% 105.48% 105.89% 105.89% 102.57% 104.56%

topp:states_06 4 3328 105.81% 105.80% 119.84% 105.82% 106.31% 104.99% 102.33%

topp:states_07 1 1361 106.60% 106.58% 119.15% 106.60% 106.76% 106.48% 108.77%

topp:states_07 2 2722 106.39% 106.39% 117.39% 106.41% 106.54% 105.07% 106.02%

topp:states_07 4 5444 106.59% 106.57% 136.14% 106.64% 107.69% 105.83% 104.06%













score small 1 731.2857142857 125.10% 125.09% 108.95% 125.09% 124.92% 125.04% 118.99%

2 1462.5714285714 124.35% 124.34% 107.01% 124.34% 124.00% 124.04% 117.89%

4 2925.1428571429 125.43% 125.43% 163.20% 125.47% 126.65% 121.00% 119.07%













score big 1 25 117.74% 117.71% 78.29% 117.71% 117.62% 117.78% 118.54%

2 50 117.45% 117.45% 74.13% 117.45% 117.23% 118.63% 116.30%

4 100 118.10% 118.09% 98.42% 118.09% 117.94% 118.44% 119.36%


Sheet 17: Marlin_Graph

Sheet 18: ductus_Marlin54
score 293.71%





















test threads ops Tavg Tmed stdDev rms Med+Stddev min max

boulder_17 1 101 98.68% 98.65% 71.90% 98.65% 98.43% 98.51% 101.39%

boulder_20 1 202 88.68% 88.63% 105.63% 88.63% 88.79% 88.52% 99.90%

shp_alllayers_43 1 404 103.47% 102.93% 96.13% 102.93% 102.85% 102.68% 140.89%

shp_alllayers_47 1 330 154.66% 154.42% 228.73% 154.42% 154.59% 154.17% 160.61%

spearfish_15 1 660 136.26% 136.15% 99.28% 136.13% 135.39% 136.25% 184.85%

spearfish_19 1 1320 118.64% 118.45% 107.14% 118.44% 118.27% 118.48% 336.31%

topp:states_06 1 340 129.82% 129.44% 127.71% 129.46% 129.44% 129.40% 341.53%

topp:states_07 1 680 142.21% 141.29% 165.96% 141.29% 141.59% 141.13% 943.35%

boulder_17 2 1360 145.52% 144.92% 1262.30% 146.07% 161.01% 131.65% 261.07%

boulder_20 2 25 142.18% 142.07% 892.30% 146.72% 172.02% 117.34% 192.22%

shp_alllayers_43 2 50 146.50% 146.18% 499.53% 146.72% 155.23% 130.70% 192.98%

shp_alllayers_47 2 100 189.95% 189.81% 820.38% 189.86% 193.08% 187.19% 199.00%

spearfish_15 2 695 207.91% 207.61% 1723.81% 208.55% 224.73% 139.92% 548.34%

spearfish_19 2 1390 177.84% 177.74% 1544.44% 178.69% 193.93% 125.21% 457.42%

topp:states_06 2 2780 186.38% 186.03% 1421.92% 186.66% 199.48% 150.99% 664.26%

topp:states_07 2 1484 191.16% 190.27% 3508.70% 194.43% 227.64% 170.43% 1818.86%

boulder_17 4 2968 253.65% 252.62% 2697.64% 259.16% 304.18% 173.76% 672.65%

boulder_20 4 5936 274.30% 273.86% 1845.62% 291.97% 356.55% 90.79% 679.64%

shp_alllayers_43 4 832 244.86% 244.58% 646.41% 245.88% 260.84% 109.99% 388.68%

shp_alllayers_47 4 1664 560.35% 563.63% 2281.21% 563.88% 576.41% 203.82% 588.05%

spearfish_15 4 3328 420.46% 420.10% 3429.08% 438.38% 527.05% 190.99% 749.69%

spearfish_19 4 1361 361.01% 360.95% 1448.86% 366.34% 407.54% 123.95% 390.71%

topp:states_06 4 2722 330.65% 330.54% 946.69% 332.19% 352.50% 137.50% 432.91%

topp:states_07 4 5444 313.45% 312.98% 1795.18% 320.58% 368.93% 140.02% 787.58%













score small 1 731.2857142857 104.29% 104.14% 93.91% 104.14% 104.03% 104.00% 156.35%

2 1462.5714285714 154.31% 153.88% 1067.70% 155.56% 171.81% 132.00% 315.51%

4 2925.1428571429 276.81% 276.14% 1934.64% 284.27% 329.67% 148.14% 607.01%













score big 1 25 154.66% 154.42% 228.73% 154.42% 154.59% 154.17% 160.61%

2 50 189.95% 189.81% 820.38% 189.86% 193.08% 187.19% 199.00%

4 100 560.35% 563.63% 2281.21% 563.88% 576.41% 203.82% 588.05%
